PL250 Series Paver Light - 2 3/8" (60mm) - Frost

Sku#: PL60FR - ESL

Availability: In Stock

Your Price: $37.50



Item Information

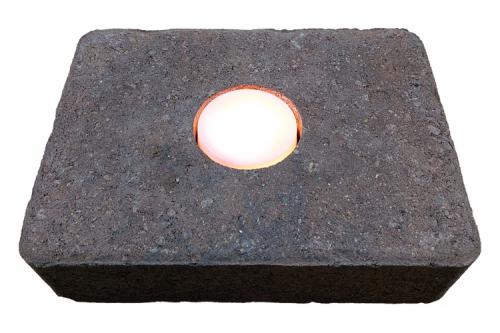

The Evening Star® 2 1/2" diameter Paver Accent Lighting Fixture is designed for all common 2 3/8" (60mm) thick paving stones. This fixture includes a two-piece Lamp Support Assembly, a 24-inch long 18/2 Wire Harness, a Lightning-Fast Power Tap Connector and a 4 watt Lamp Module.

The lamp support assembly installs into the core-drilled paver from the bottom. The assembly becomes part of the paver and contains 6-inches of the wire harness which allows enough slack for future field replacement or changing colors of the lamp module. The wire harness plugs into the back of the lamp module with a waterproof socket and receptacle. The lamp module is supplied with NYK-77 Anti-Corrosive Compound on the receptacle and should not be wiped off prior to connection. The lamp module is mated to the lamp support assembly with a unique quarter-turn cam-lock. Once the paver is placed in position, the lamp module is easily removed by using the Paver Light Removal tool and Compressed Air Kit available as an accessory.

Connections to 10/2, 12/2, 14/2, and 16/2 low voltage underground circuit cable are quickly made using our reusable Lighting-Fast™ Power Tap Connector and is included with each fixture. No cutting or splicing of the underground circuit cable is necessary.

Evening Star® Paver Lights may be easily disconnected, moved and re-connected to accomodate changing patio layouts and amenities1 mm thick shim washers are used to compensate for varying thickness of materials when installing fixtures in brick or natural stone, and are available as an accessory. Please see our downloadable PL250 Series Instruction Sheet.

  • Round Design - Recesses securely into paver, hidden fixture contains the wire harness.
  • Universal Size - Fits all standard 2 3/8" (60 mm) thick concrete pavers.
  • Durable Polycarbonate Construction - Withstands vehicular and pedestrian traffic.
  • Economical Light Source - Uses a low voltage, 4-watt, long-lasting incandescent lamp.
  • Maintenance-Free - Lamp Modules are totally sealed, weed and corrosion proof even in harsh coastal environments.
  • No Re-lamping Necessary - Unique Cam-Lock™ allows quick replacement of Lamp Module.
  • Exclusive Lightning-Fast Power Tap Connector - Make quick circuit connections to power supply cable.
  • Add or Relocate Fixtures Easily - Without wire nuts or splicing.
  • Recessed Lamp Module - Prevents damage from snow removal equipment.
  • Choice of 10 lens Colors - Mix and match colors for demarcation, delineation or accenting aspects of your landscape design.
  • Weather Resistant - Lamp Modules are unaffected by water, corrosive de-icing salts, or coastal environments.


Evening Star® PL250 Series Paver Accent Light
 Model  PL60FR
 Volts  12
 Watts  4
 Amps  0.33
 Lamp  Incandescent (Non-Serviceable)
 Ingress Rating  Waterproof IP67
 Socket  0.180 Bullet
 Lens  Lexan® Polycarbonate, UV Stabilized
 Body  High-Density Polyethylene
 Cable  24" 18/2 SPT1-W
 Connector  Multi-Gauge Pierce Type cULus Listed
 Certifications  cULus Listed
 Dimensions  2 1/2" (65mm)D x 2 3/8" (60mm)H
 Weight  4.25oz
