Evening Star 300 Watt Stainless Steel Transformer

Sku#: ESPU300W - ESL

Availability: In Stock

Your Price: $199.95



Item Information

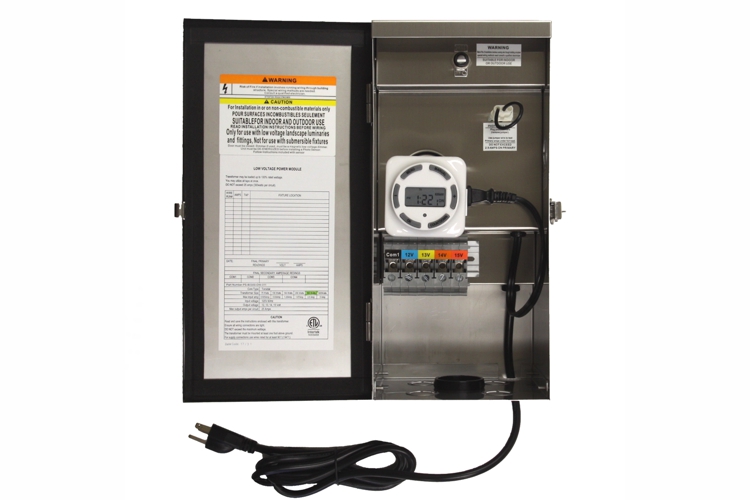

Evening Star® 300 watt stainless steel transformer with a thermally protected, resin-sealed toroidal core, 12, 13, 14, & 15 volt taps; a built-in, 3-prong receptacle for an optional timer; manual on-off switch; secondary circuit breaker; five 1/2-inch, five 3/4-inch and one 1 3/4-inch knockouts; removable door and bottom; and a 6-foot long, 3-prong grounded power cord. Built-in hang tabs with included hardware facilitate installation. Optional photocell automatically controls dusk to dawn on-off function. UL1838 Compliant, ETL Listed. Dimensions: 13”L x 6.5”W x 6.25”H. Weight: 17 lbs.


Related Documents:
ESL SST Transformers Brochure
300 Watt Stainless Steel Landscape Lighting Transformer
 Model  ESPU300W
 Brand  Evening Star®
 Type  Toroidal
 Input  120V AC
 Frequency  60Hz
 Primary Protection  Thermal Reset
 Output  12V, 13V, 14V and 15V AC
 Watts  150
 Amps  25
 Secondary Protection  25A Magnetic Circuit Breaker
 Wire Connection  Screw Lug
 Control  Built-In On-Off Switch
 Timer  Optional
 Photocell  Optional Plug & Play
 Housing  Brushed Stainless Steel
 Knockouts  Five 1/2", 3/4", One 1 3/4"
 Mounting Tabs  2, With Included Hardware
 Power Cord  6' 18 AWG SJTW with 3-Prong Plug
 Certifications  RoHS, ETL, UL1838
 Ingress Rating  Weatherproof IP54
 Dimensions  13"L x 6.5"W x 6.5"H
 Weight  17 Lbs.



Maximum Number Of Wires Per Terminal (Com1, 12V, 13V, 14V, 15V)
Wire Gauge Wire Diameter Number Of Wires
10 AWG 0.10 (2.58mm) 4
12 AWG 0.08 (2.05mm) 5
14 AWG 0.06 (1.62mm) 6
16 AWG 0.05 (1.29mm) 9
18 AWG 0.04 (1.02mm) 10
