Evening Star 75 Watt Stainless Steel Transformer

Sku#: ESPU75W - ESL

Availability: In Stock

Your Price: $139.95



Item Information

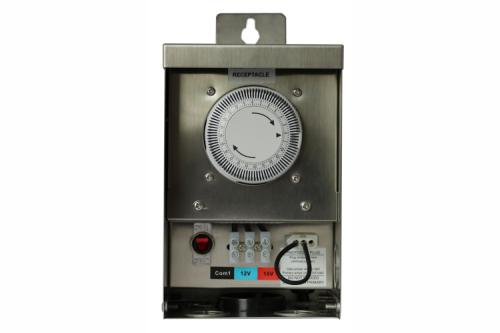

Evening Star® 75 watt stainless steel transformer with a thermally protected, resin-sealed toroidal core, 12 and 15 volt taps, and includes a built-in mechanical timer; manual on-off switch; secondary circuit breaker; five 1/2-inch, five 3/4-inch and one 1 3/4-inch knockouts; removable door and bottom; and a 6-foot long, 3-prong grounded power cord. Built-in hang tabs with included hardware facilitate installation. Optional photocell automatically controls dusk to dawn on-off function. UL 1838 Compliant, ETL Listed. Dimensions: 6.75”L x 4.5”W x 4.5”H. Weight: 7 lbs.


Related Documents:
ESL SST Transformers Brochure
75 Watt Stainless Steel Landscape Lighting Transformer
 Model  ESPU75W
 Brand  Evening Star®
 Type  Toroidal
 Input  120V AC
 Frequency  60Hz
 Primary Protection  Thermal Reset
 Output  12V and 15V AC
 Watts  75
 Amps  6.25
 Secondary Protection  7A Magnetic Circuit Breaker
 Wire Connection  Terminal Block
 Control  Built-In On-Off Switch
 Timer  Built-In Mechanical Timer
 Photocell  Optional Plug & Play
 Housing  Brushed Stainless Steel
 Knockouts  Five 1/2", 3/4", One 1 3/4"
 Mounting Tabs  2, With Included Hardware
 Power Cord  6' 18 AWG SJTW with 3-Prong Plug
 Certifications  RoHS, ETL, UL1838
 Ingress Rating  Weatherproof IP54
 Dimensions  6.75"L x 4.5"W x 4.5"H
 Weight  7 Lbs.



Maximum Number Of Wires Per Terminal (Com1, 12V, 15V)
Wire Gauge Wire Diameter Number Of Wires
10 AWG 0.10 (2.58mm) 1
12 AWG 0.08 (2.05mm) 1
14 AWG 0.06 (1.62mm) 2
16 AWG 0.05 (1.29mm) 3
18 AWG 0.04 (1.02mm) 4
