Evening Star Deck & Rail Lighting System

DL250 Series / Model DL250 CRESCENT™ Series Model DLSS600 & DLDS600 Deck & Rail Lighting for traditional wood or composite decking as thin as one inch in a variety of applications.

Evening Star Deck & Rail Lighting System

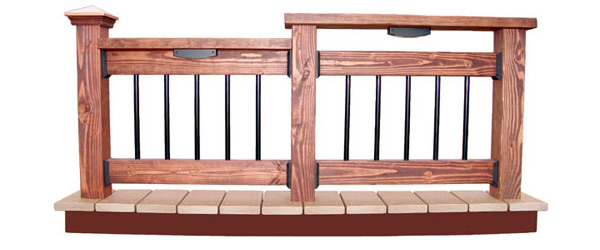

Our CRESCENT™ Deck Rail Light for traditional wood decking is offered in two models. The DLSS600 single faceplate model mounts easily under intermittent top rail. Model DLDS600, has a double faceplate for mounting under continuous top rail.

Deck Light Single FaceplateSingle Faceplate (Model DLSS600)

Deck Light Double FaceplateDouble Faceplate (Model DLDS600)

Both have a 12 volt, 8 watt, snap-in, double-bulb Lamp Module™ with a 15,000 hour rating and advanced optics. Ideal surface illumination is attained because the Lamp Module is fixed at a 30° angle to project a diffused wash of light forward onto the ground or decking. The commercial grade, stainless steel fixture with antiqued, faceplate is available in several designer and powder-coated, faux finish options.

Lens Options

Wall Light LensWarm White
(Included with all fixtures)

Wall Light Lens for BugsBug Light
(Available to ward off flying and swarming insects)

Compare these features and benefits with other deck rail lights:

  • 15,000 hour rating on the Lamp Module
  • Fixed 30° angle projects light forward onto the deck surface
  • Snap-in double Lamp Module™ replaces easily without tools
  • Antiqued, designer faceplate
  • 10 foot wire harness, cable connector, and mounting hardware included

DL250 Deck Light Mounting Options

Evening Star Deck Lighting System

A universal stainless steel mount is provided to attach the Lamp Module using our unique Cam Lock™ feature. When recessing the fixture into wood or solid composite material, a two-step shallow counter bore is made using a Forstner bit. The stainless steel mount is screwed in place, and completed with a Lamp Module. For surface mounting, only a wire access hole needs to be provided. The completed fixture and wire harness quickly connects to standard 12/2, or optional 10/3 circuit cable with a unique, reusable Power Tap Connector™. US Patent Nos. 7,070,294 & 7,556,394. CA Patent Nos. 2,491,501 & Pending 2,591,736

Lamp Module Color Selections

Evening Star® Lamp Modules come in your choice of ten custom formulated colors - five Designer Colors and five Architectural Colors. Mix and match our Designer Colors for demarcation, delineation or color washing. Our Architectural Colors comprise shades specially created to harmonize with tones found in wood and composite decking materials.

For Dock, Deck & Paver Lights (PL & DL Series).

Designer Colors:
Lamp Module FrostFrost
Lamp Module RougeRouge
Lamp Module SeaglassSeaglass
Lamp Module FireflyFirefly
Lamp Module PacificPacific
Architectural Colors:
Lamp Module BlushBlush
Lamp Module BrandywineBrandywine
Lamp Module SesameSesame
Lamp Module DriftwoodDriftwood
Lamp Module AshAsh
