Evening Star Dock Lighting System

DL250 Series / Model DL250 Dock Lighting is just the thing for subtle illumination on wood and composite decking, and a variety of other material.

Evening Star Dock Lighting System

A mere 2 1/2 inches in diameter, the small footprint and understated round design of our Dock Lighting fixture embodies both function and flair. Depending on the actual material and installation criteria, Evening Star® Lamp Modules can be surface mounted or recessed flush with the surface - adding stylish accent and security lighting to decks, boat docks, ramps for the physically challenged, steps and posts.

Our patented Evening Star® DL250 Series Deck & Dock Lighting System can also be installed in commercial and retail outdoor environments. For example, restaurants and alfresco cafes; public marinas; hotels/motels, miniature golf centers; cabanas, bars and pergolas are good choices for all Evening Star® Products. US Patent Nos. 7,070,294 & 7,556,394. CA Patent Nos. 2,491,501 & Pending 2,591,736

Dock Light Mounting Options

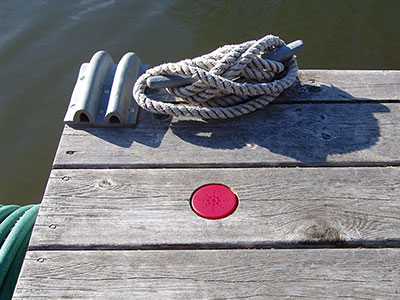

Dock Light Recessed MountRecessed Mount

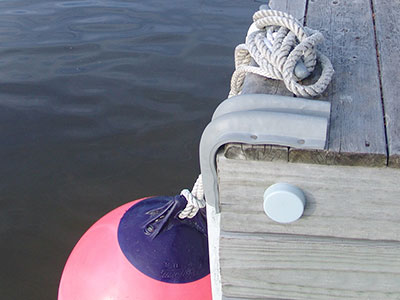

Dock Light Surface MountSurface Mount

A universal stainless steel mount is provided to attach the Lamp Module using our unique Cam Lock™ feature. When recessing the fixture into wood or solid composite material, a two-step shallow counter bore is made using a Forstner bit. The stainless steel mount is screwed in place, and completed with a Lamp Module. For surface mounting, only a wire access hole needs to be provided. The completed fixture and wire harness quickly connects to standard 12/2, or optional 10/3 circuit cable with a unique, reusable Power Tap Connector™.

Lamp Module Color Selections

Evening Star® Lamp Modules come in your choice of ten custom formulated colors - five Designer Colors and five Architectural Colors. Mix and match our Designer Colors for demarcation, delineation or color washing. Our Architectural Colors comprise shades specially created to harmonize with tones found in wood and composite decking materials.

For Dock, Deck & Paver Lights (PL & DL Series).

Designer Colors:
Lamp Module FrostFrost
Lamp Module RougeRouge
Lamp Module SeaglassSeaglass
Lamp Module FireflyFirefly
Lamp Module PacificPacific
Architectural Colors:
Lamp Module BlushBlush
Lamp Module BrandywineBrandywine
Lamp Module SesameSesame
Lamp Module DriftwoodDriftwood
Lamp Module AshAsh

Compare these features and benefits with other products in the marketplace:

  • Round Design - Recesses securely into paver, hidden fixture contains the wire harness.
  • Universal Size - Fits all standard 2 3/8" (60 mm) and 2 3/4" (70 mm) thick concrete pavers.
  • Durable Polycarbonate Construction - Withstands vehicular and pedestrian traffic.
  • Economical Light Source - Uses a low voltage, 4-watt, long-lasting incandescent lamp.
  • Maintenance-Free - Lamp Modules are totally sealed, weed and corrosion proof even in harsh coastal environments.
  • No Re-lamping Necessary - Unique Cam-Lock™ allows quick replacement of Lamp Module.
  • Exclusive Power Tap™ Connector - Make quick circuit connections to power supply cable.
  • Add or Relocate Fixtures Easily - Without wire nuts or splicing.
  • Recess or Surface Mount - Installs quickly and easily to virtually any surface.
  • Choice of 10 lens Colors - Mix and match colors for demarcation, delineation or accenting aspects of your landscape design.
